| 产品说明：
（宁波飞驰 FEICHIAN 品牌）质保两年

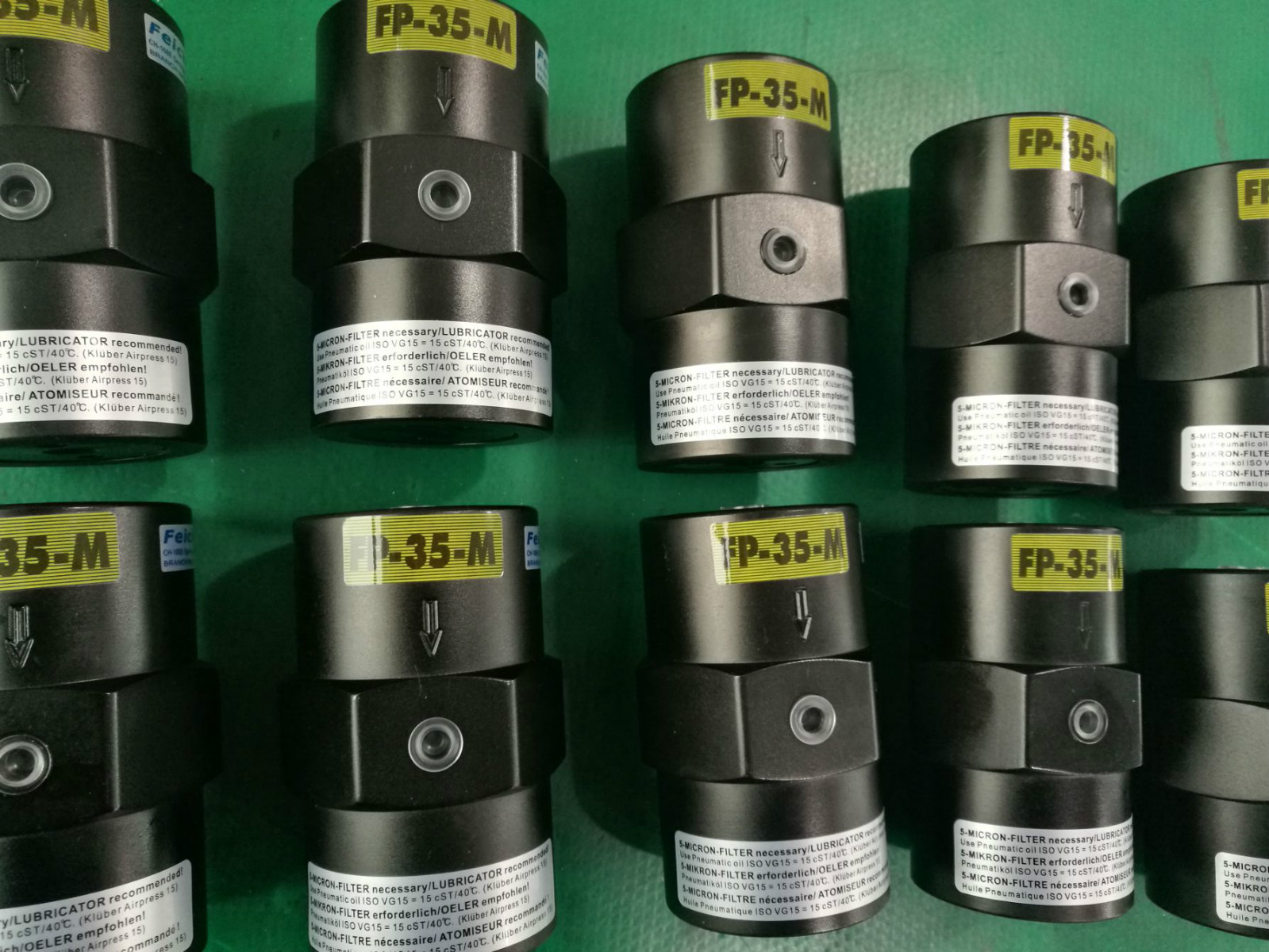

气动振动器FP12-M FP-18-M FP-25-M FP-35-M全系列，
气动振动器FP-12-S/L FP-25-S/L FP-35-S/L全系列
直线振动可上下可左右运动，耗气少，效果好，
国家专利产品，震动力和频率均可调.
性能参数表
|
型号
|
频率 V.P.M
|
测得的离心力
|
空气消耗量/分钟
|
噪声级
|
|
2Bar
29PSI
|
4Bar
58PSI
|
6Bar
87PSI
|
2Bar=29PSI
|
4Bar=58PSI
|
6Bar=87PSI
|
2Bar=29PSI
|
4Bar=58PSI
|
6Bar=87PSI
|
|
N
|
LBS
|
N
|
LBS
|
N
|
LBS
|
Ltr.
|
CF
|
Ltr.
|
CF
|
Ltr.
|
CF
|
dBA*
|
dBA**
|
|
FP-12-S
|
5,100
|
6,100
|
6,800
|
34
|
7.7
|
70
|
16
|
92
|
21
|
0.8
|
0.03
|
7.5
|
0.26
|
25
|
0.88
|
56-61
|
|
|
FP-12-M
|
5,000
|
6,000
|
6,700
|
34
|
7.7
|
58
|
13
|
74
|
17
|
0.5
|
0.02
|
4
|
0.14
|
19
|
0.67
|
57-61
|
|
|
FP-12-L
|
4,800
|
5,800
|
6,400
|
32
|
7.2
|
58
|
13
|
81
|
18
|
1
|
0.04
|
3
|
0.11
|
20
|
0.71
|
58-60
|
|
|
FP-18-S
|
4,100
|
5,100
|
6,000
|
66
|
15
|
134
|
30
|
187
|
42
|
5
|
0.18
|
33
|
1.16
|
57
|
2.00
|
62-71
|
|
|
FP-18-M
|
4,000
|
5,000
|
5,900
|
68
|
15
|
134
|
30
|
188
|
42
|
4
|
0.14
|
28
|
1.00
|
52
|
1.84
|
61-67
|
|
|
FP-18-L
|
4,000
|
4,000
|
5,600
|
64
|
14
|
150
|
34
|
206
|
46
|
5
|
0.18
|
23
|
0.81
|
46
|
1.62
|
61-68
|
|
|
FP-25-S
|
3,100
|
4,000
|
4,500
|
126
|
28
|
270
|
61
|
416
|
94
|
13
|
0.46
|
54
|
1.91
|
93
|
3.28
|
70-75
|
61-67
|
|
FP-25-M
|
3,000
|
3,800
|
4,200
|
142
|
32
|
364
|
82
|
504
|
113
|
23
|
0.81
|
50
|
1.76
|
87
|
3.07
|
73-75
|
62-66
|
|
FP-25-L
|
2,400
|
3,100
|
3,700
|
186
|
42
|
392
|
88
|
594
|
134
|
18
|
0.64
|
62
|
2.19
|
93
|
3.28
|
72-75
|
60-65
|
|
FP-35-S
|
3,100
|
4,700
|
5,800
|
294
|
66
|
668
|
150
|
1,038
|
234
|
23
|
0.81
|
101
|
3.56
|
162
|
5.72
|
72-77
|
71-73
|
|
FP-35-M
|
3,000
|
4,000
|
4,600
|
248
|
56
|
778
|
175
|
1,080
|
243
|
24
|
0.85
|
83
|
2.93
|
141
|
4.98
|
74-78
|
70-73
|
|
FP-35-L
|
2,800
|
3,700
|
4,300
|
282
|
63
|
680
|
153
|
1,066
|
240
|
38
|
1.34
|
89
|
3.14
|
135
|
4.70
|
74-80
|
68-74
|
尺寸表
|
型号
|
A
|
B
|
C
|
D
|
E*
|
F*
|
壳体重量
|
活塞重量
|
总重量
|
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
公制螺纹
|
英国标准管螺纹
|
英国标准管螺纹
|
kg
|
Lbs.
|
kg
|
Lbs.
|
kg
|
Lbs.
|
|
FP-12-S
|
71
|
2.80
|
31
|
1.22
|
34
|
1.34
|
M8
|
1/8"
|
1/8"
|
0.125
|
0.275
|
0.020
|
0.045
|
0.145
|
0.320
|
|
FP-12-M
|
81
|
3.19
|
0.140
|
0.309
|
0.030
|
0.066
|
0.170
|
0.375
|
|
FP-12-L
|
94
|
3.70
|
0.165
|
0.360
|
0.040
|
0.090
|
0.205
|
0.450
|
|
FP-18-S
|
81
|
3.19
|
40
|
1.57
|
42
|
1.65
|
M10
|
1/8"
|
1/8"
|
0.220
|
0.485
|
0.060
|
0.135
|
0.280
|
0.620
|
|
FP-18-M
|
94
|
3.70
|
0.260
|
0.575
|
0.080
|
0.175
|
0.340
|
0.750
|
|
FP-18-L
|
109
|
4.29
|
0.300
|
0.660
|
0.110
|
0.240
|
0.410
|
0.900
|
|
FP-25-S
|
98
|
3.86
|
48
|
1.89
|
50
|
1.97
|
M12
|
1/8"
|
1/4"
|
0.375
|
0.825
|
0.155
|
0.345
|
0.530
|
1.170
|
|
FP-25-M
|
116
|
4.57
|
0.435
|
0.955
|
0.215
|
0.475
|
0.650
|
1.430
|
|
FP-25-L
|
136
|
5.35
|
0.500
|
1.100
|
0.290
|
0.640
|
0.790
|
1.740
|
|
FP-35-S
|
98
|
3.86
|
58
|
2.28
|
65
|
5.56
|
M12
|
1/8"
|
1/4"
|
0.530
|
1.170
|
0.315
|
0.690
|
0.845
|
1.860
|
|
FP-35-M
|
116
|
4.57
|
0.610
|
1.345
|
0.430
|
0.950
|
1.040
|
2.290
|
|
FP-35-L
|
136
|
5.53
|
0.700
|
1.540
|
0.580
|
1.280
|
1.280
|
2.820
|
为了达到振动的精密度，为此我们建立了一套完整的品控体系
|
